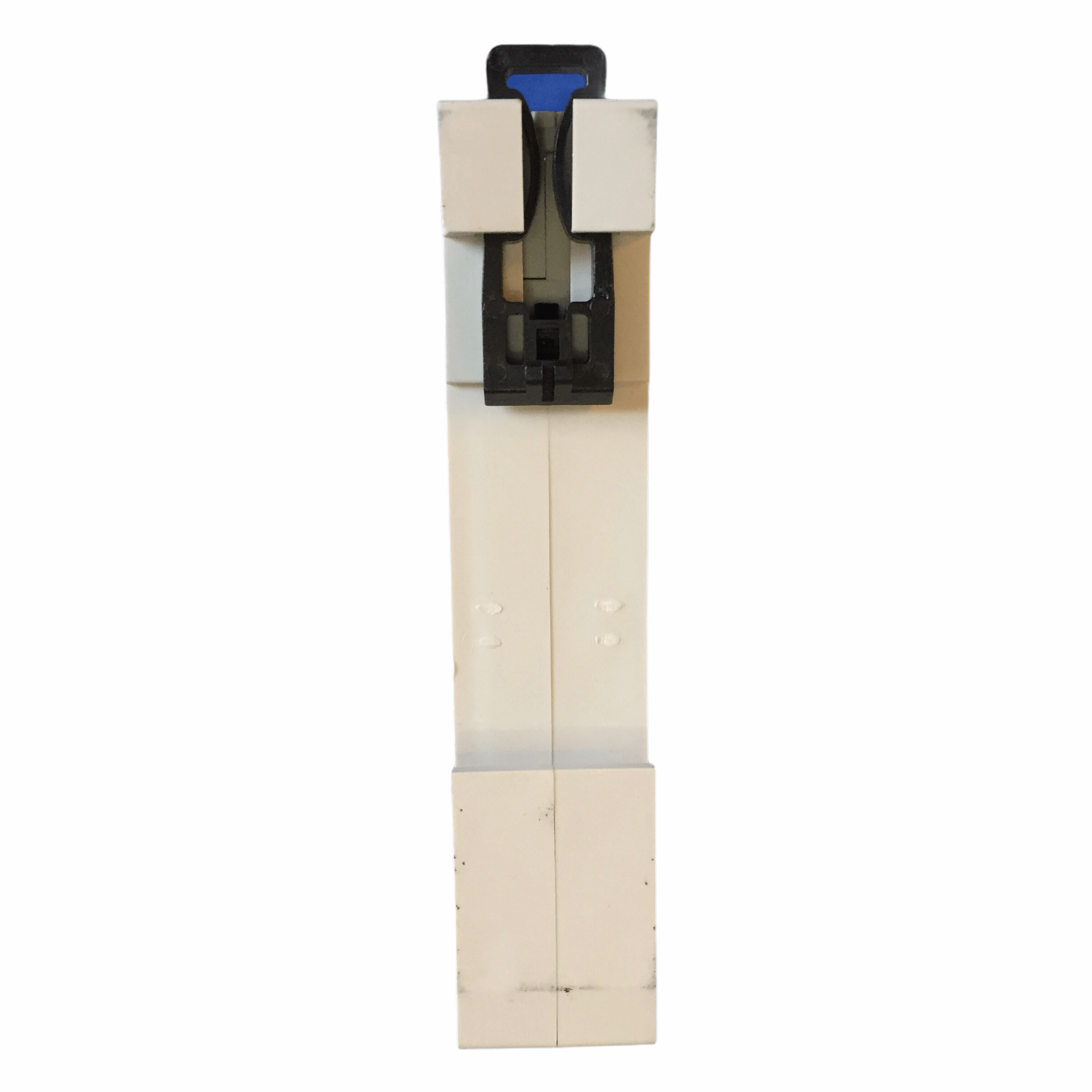

Main Switch 1 Pole DIN Rail

Clear
Quote
Code MS1P63 Category
BrandTransco
CategoryMS
Name10ka main switch 1/3 pole
Model 1 Pole1 pole: MS1P63, MS1P80, MS1P100
Model 3 Pole3 pole: MS3P63, MS3P80, MS3P100
StandardIEC60947-3
Rated current100A
Rated voltage230/400V
Rated operating current63, 80, 100A
Rated short time withstand capacity25KA (connect 100 A fuse protector)
Number of pole1, 3
Electrical lifemore than 1500 times
Mechanical lifemore than 1000 times
Using TypeAC-22
Protection classIP20
Operating temperature-5+40 degree C
Max Altitude2000m
Pollution levelGrade 3
InstallationIEC standard, DIN rail 35mm
